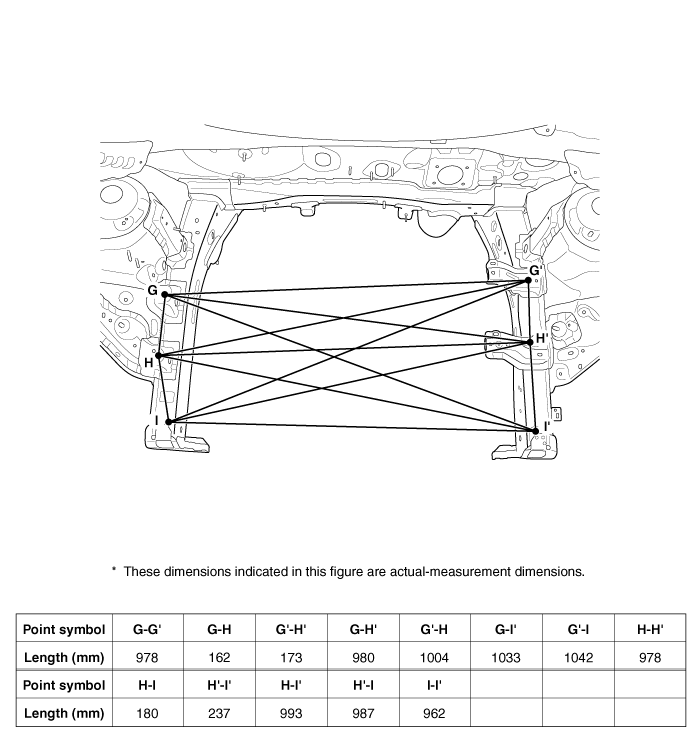

Hyundai Accent: Front Body C ( 4Door )
|
|
|
|
|
Engine mounting bracket hole (Ø12) |
Battery tray leg bracket tooling hole (Ø12) |
Engine mounting bracket hole (Ø12) |
|
|
|
|
|
Battery tray leg bracket tooling hole (Ø15) |
Front side member tooling hole (Ø9) |
Front side member tooling hole (Ø6.6) |
Front Body B ( 4Door )
Hood hinge mounting hole (Ø10)
Fender apron upper member tooling
hole (Ø6.6)
Cowl under ...
Front Body D ( 5Door )
Hood hinge mounting hole (Ø10)
Fender apron upper member tooling
hole (Ø6.6)
Front shock ...
