Hyundai Accent RB (2010-2018) Service Manual / Suspension System / Front Suspension System / Front Strut Assembly. Components and Components Location

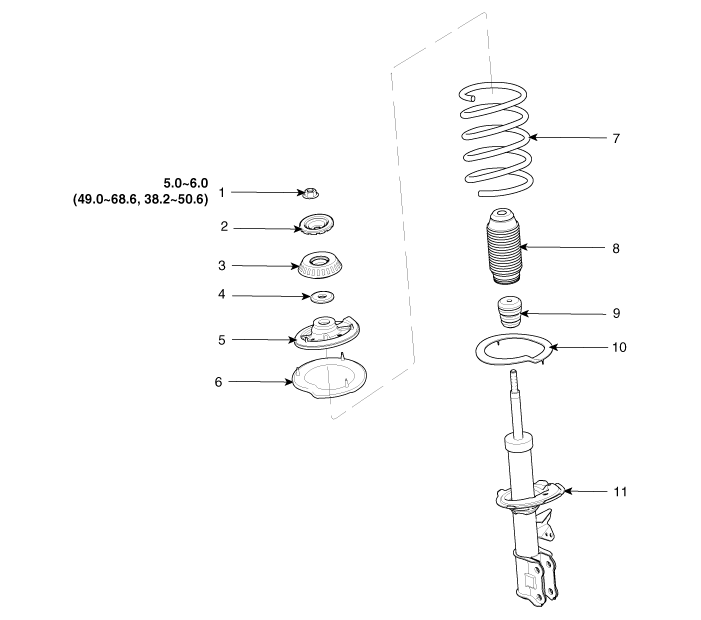

Components

•
Tighten with specifed torque at curb position of vehicle
•
Fix the strut rod end and tighten the nut
1. Lock nut
2. Insulator dust cap
3. Strut insulator
4. Strut bearing
5. Spring upper seat
6. Spring upper pad
7. Coli spring
8. Dust cover
9. Bumper rubber
10. Spring lower pad
11. Shock absorber


Components and Components Location
Components Location 1. Sub frame 2. Drive shaft 3. Lower arm 4. Strut assembly 5. Steering gearbox 6. Stabilizer bar ...
