Hyundai Accent: Injector. Troubleshooting
Hyundai Accent RB (2010-2018) Service Manual / Engine Control/Fuel System / Engine Control System / Injector. Troubleshooting

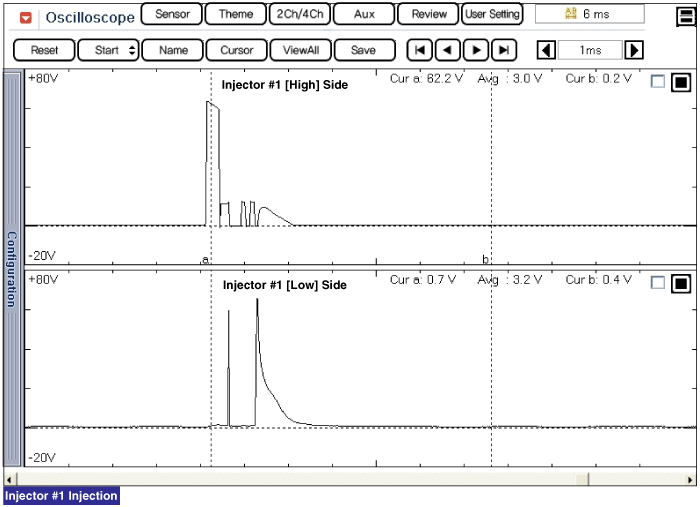

Signal Waveform
Injector. Specifications
Specification
Item
Specification
Coil Resistance (Ω)
1.5 [20°C(68°F)]
...
Injector. Schematic Diagrams
Circuit Diagram
(M/T)
(A/T)
...
