Hyundai Accent RB (2010-2018) Service Manual / Restraint (Depowered) / General Information / Components and Components Location / Components Location
| Supplemental Restraint System Control Module (SRSCM) |

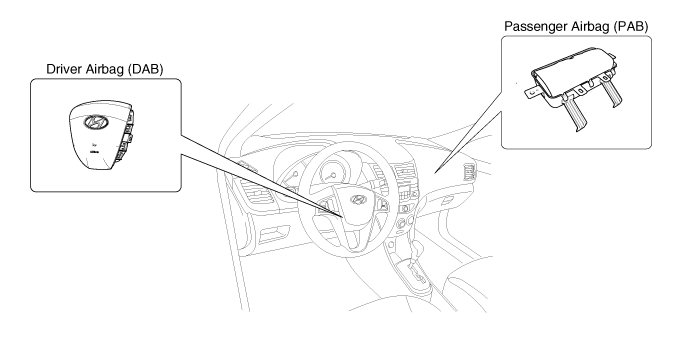

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

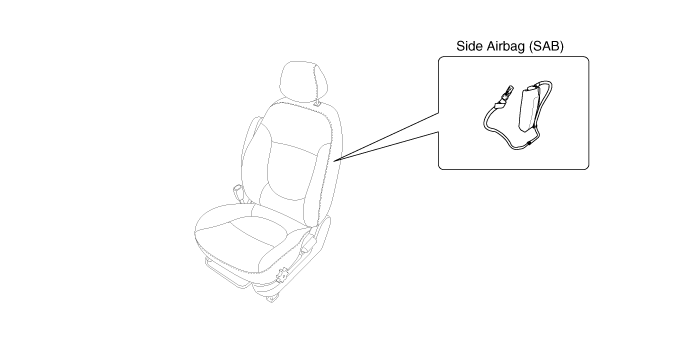

| Side Airbag (SAB) |

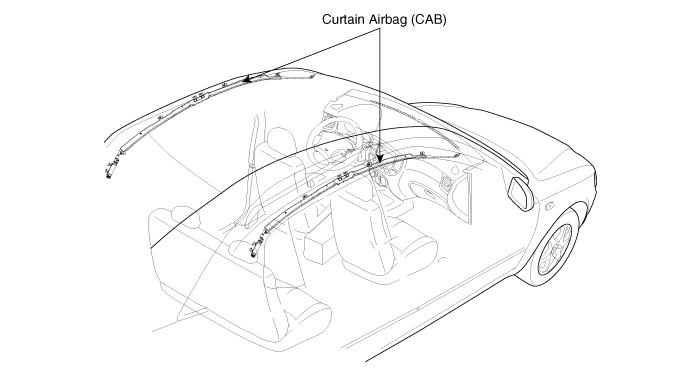

| Curtain Airbag (CAB) |
| Front Impact Sensor (FIS) |

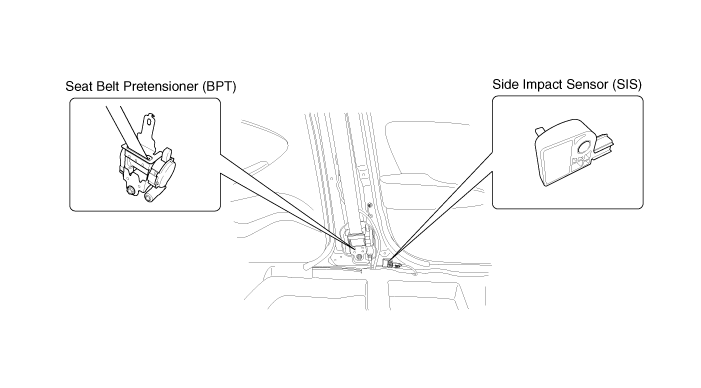

| Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT) |
Components
1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Passenger Airbag (PAB)
5. Side Airbag (SAB)
6. Curtain Airbag (CAB)
7. Seat Belt Pretensioner ( ...
SRSCM
...
See also:
Replacement
1.
Remove the rear wheel & tire.
Tightening torque :
88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
...
Inspection
1.
Check signal waveform of Input & output speed sensor using the
GDS.
Specification:
Refer to "Signal Wave Form" section.
...
SRSCM Connector terminal
Pin
Function (Connector A)
Pin
Function (Connector B)
1
Ignition
1
Seat belt pretensioner [Drive ...
