Hyundai Accent: Front Body A ( 4Door )
Hyundai Accent RB (2010-2018) Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body. Body Repair / Front Body A ( 4Door )
|
|
|
|
|

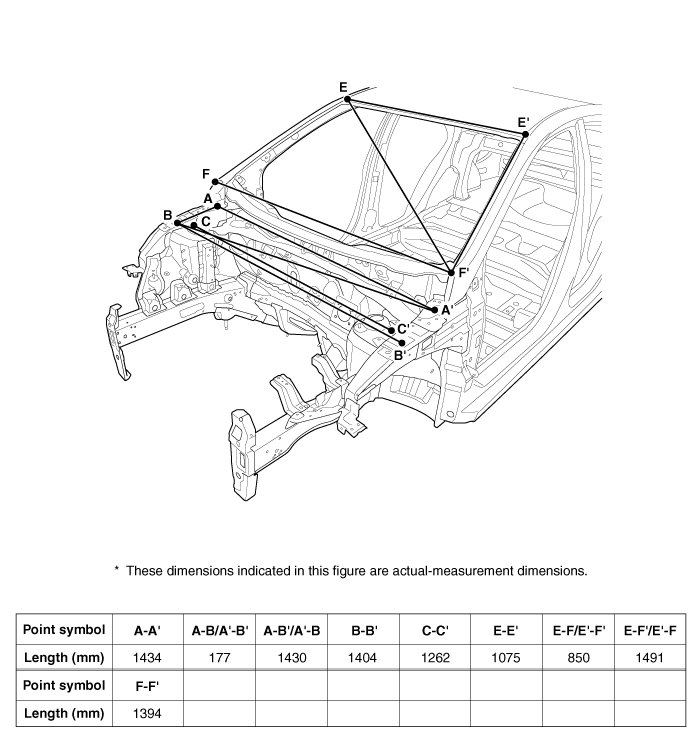

Hood hinge mounting hole (Ø10) |
Fender apron upper member tooling hole (Ø6.6) |
Front shock absorber cover panel tooling hole (Ø10) |
|
|
|
|
|
Roof panel front corner |
Front pillar outer panel corner |
|
