Hyundai Accent: Front Disc Brake. Components and Components Location - Brake System - Brake SystemHyundai Accent: Front Disc Brake. Components and Components Location

Hyundai Accent RB (2010-2018) Service Manual / Brake System / Brake System / Front Disc Brake. Components and Components Location

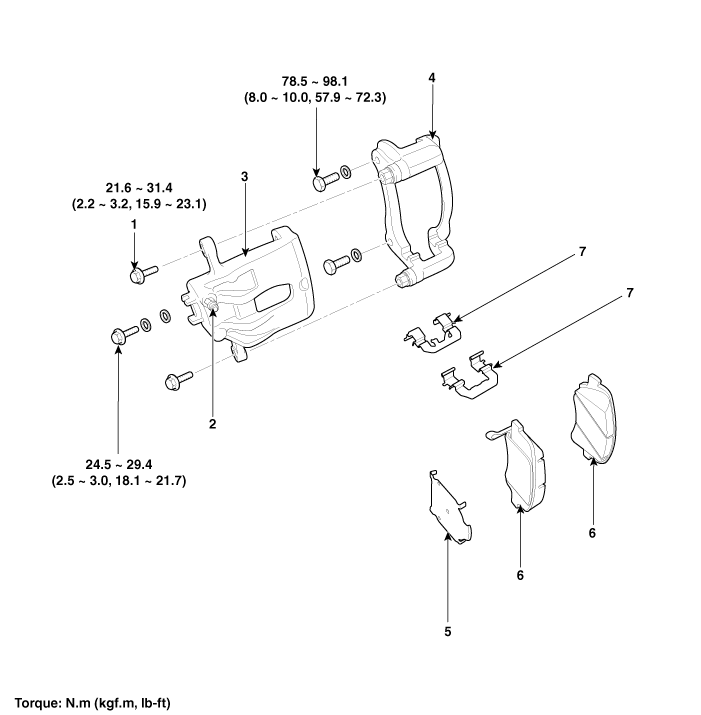

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper body
4. Caliper carrier
5. Inner pad shim
6. Brake pad
7. Pad retainer
