Hyundai Accent: High mounted stop light bulb replacement

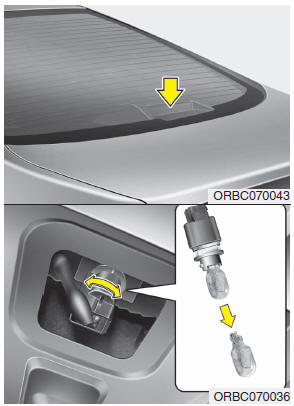

4 Door
1. Open the trunk lid.
2. Remove the socket by turning it counterclockwise.
3. Replace the bulb from the socket.
4. Install the socket by turning it clockwise.
5 Door
If the light is not operating, have the vehicle checked by an authorized HYUNDAI dealer.
Rear combination light bulb replacement (5 Door)
(1) Tail light
(2) Rear turn signal light
(3) Back-up light
(4) Stop and tail light
(5) Side marker
1. Open the tailgate.
2. Loosen the light assembly retaining screws with a cross-tip screw ...
License plate light bulb replacement
4 Door
1. Remove the trunk trim.
2. Remove the socket by turning it counterclockwise.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Install the socket by turning it c ...
