Hyundai Accent: Instrument cluster - Features of your vehicleHyundai Accent: Instrument cluster

Hyundai Accent RB (2010-2018) Owners Manual / Features of your vehicle / Instrument cluster

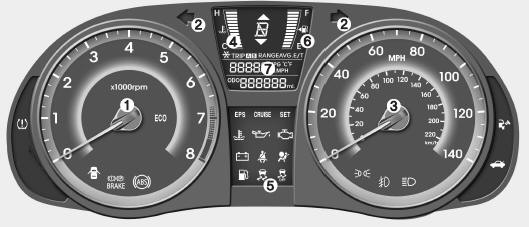

Type A

Type A

Type B

Type B

1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5.Warning and indicator lights
6. Fuel gauge
7. Odometer/Trip computer

❈ The actual cluster in the vehicle may differ from the illustration. For more details refer to the "Gauges" section in the next pages.
