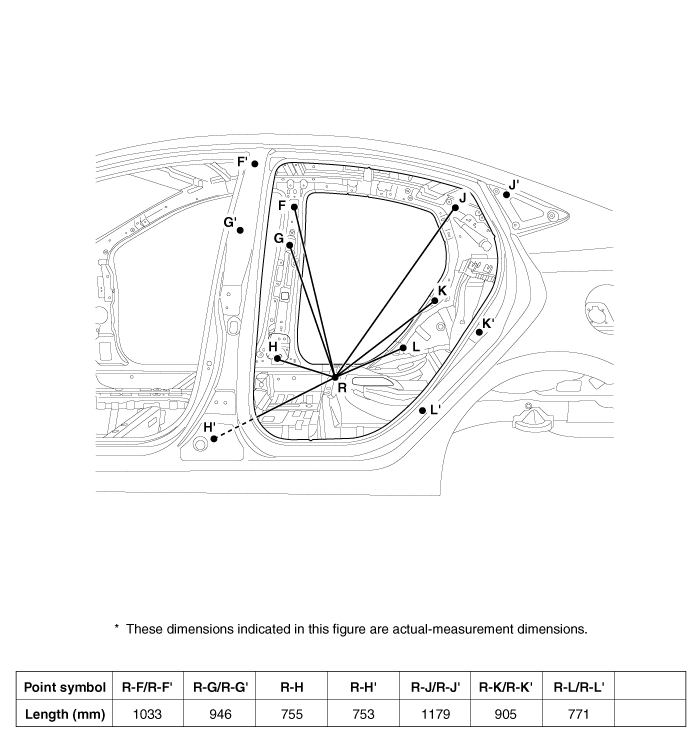

Hyundai Accent: Interior D ( 4Door )
Hyundai Accent RB (2010-2018) Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior. Body Repair / Interior D ( 4Door )
|
|
|
|
|
Seatbelt height adjust upper mounting hole (Ø15) |
Seatbelt height adjust lower mounting hole (Ø15) |
Front seatbelt retractor mounting hole (Ø12) |
|
|
|
|
|
Quarter inner panel tooling hole (Ø8.5) |
Quarter inner panel tooling hole (Ø18) |
Wheel house panel tooling hole (Ø10) |
|
|
|
|
|
Rear floor panel tooling hole (Ø7) |
|
|
Interior C ( 4Door )
Front pillar trim mounting hole (Ø8.5)
Front pillar trim mounting hole (Ø8)
Cowl cross ...
Interior E ( 5Door )
Front pillar trim mounting hole (Ø8.5)
Front pillar trim mounting hole (Ø8)
Cowl cross ...
