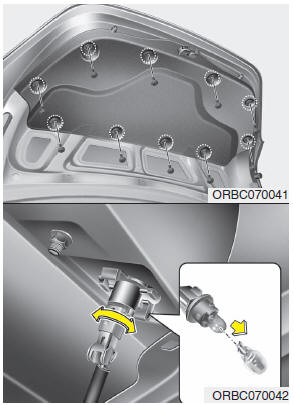

4 Door
1. Remove the trunk trim.
2. Remove the socket by turning it counterclockwise.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Install the socket by turning it clockwise.
6. Install the trunk trim.
5 Door
1. Using a flat-blade screwdriver, remove the light assembly from the vehicle
by prying the lens gently.
2. Remove the socket from the lens. 3. Remove the bulb by pulling it straight out.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
1. TCM Connector and Terminal Function
...
Troubleshooting
Troubleshooting
1.
The lamp switch inputs can be checked using the GDS.
2.
To check the input value of lamp switch, select option "Body Co ...
Removal
1.
Turn the ignition switch OFF and disconnect the battery
negative (-) cable.
2.
Disconnect the purge control solenoid valve connector
...
