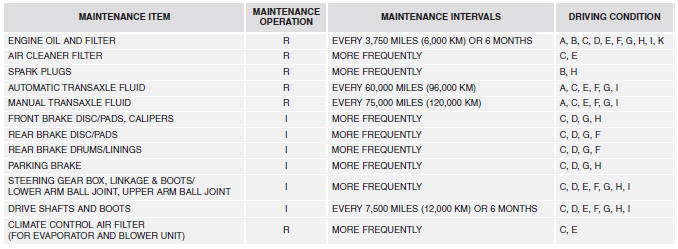

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
SEVERE DRIVING CONDITIONS
A - Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B - Extensive engine idling or low speed driving for long distances
C- Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D- Driving in areas using salt or other corrosive materials or in very cold weather
E - Driving in sandy areas
F - Driving in heavy traffic area over 90°F (32°C)
G- Driving on uphill, downhill, or mountain road
H- Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle towing
J - Driving over 106 mph (170 km/h)
K - Frequently driving in stop-and-go conditions
Replacement
Front Brake Pads
1.
Remove the brake hose mounting bracket bolt (A).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.7 ...
Front Body A ( 4Door )
Hood hinge mounting hole (Ø10)
Fender apron upper member tooling
hole (Ø6.6)
Front shock ...
Output Speed Sensor. Description and Operation
Description
The output speed sensor (A) is a vital unit that measures the rate of
rotation of the transaxle's turbine shaft and output shaft, and delivers the
readings to the TCM. The se ...
