Hyundai Accent: Occupant detection system - Air bag - advanced supplemental restraint system - Safety features of your vehicleHyundai Accent: Occupant detection system

Your vehicle is equipped with an occupant detection system in the front passenger's

Your vehicle is equipped with an occupant detection system in the front passenger's seat.

The occupant detection system is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not. The driver's front air bag is not affected or controlled by the occupant detection system.

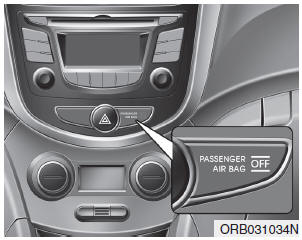

Do not put anything in front of the passenger air bag off indicator. WARNING

Do not put anything in front of the passenger air bag off indicator.

SRS components and functions
The SRS consists of the following components: 1. Driver's front air bag module 2. Passenger's front air bag module 3. Side impact air bag modules 4. Curtain air bag modules 5. Retractor ...

Main components of occupant detection system
A detection device located within the front passenger seat. Electronic system to determine whether the front passenger air bag system should be activated or deactivated. A warning light loca ...
