Hyundai Accent: Relay Box (Engine Compartment). Components and Components Location

Components and Components Location

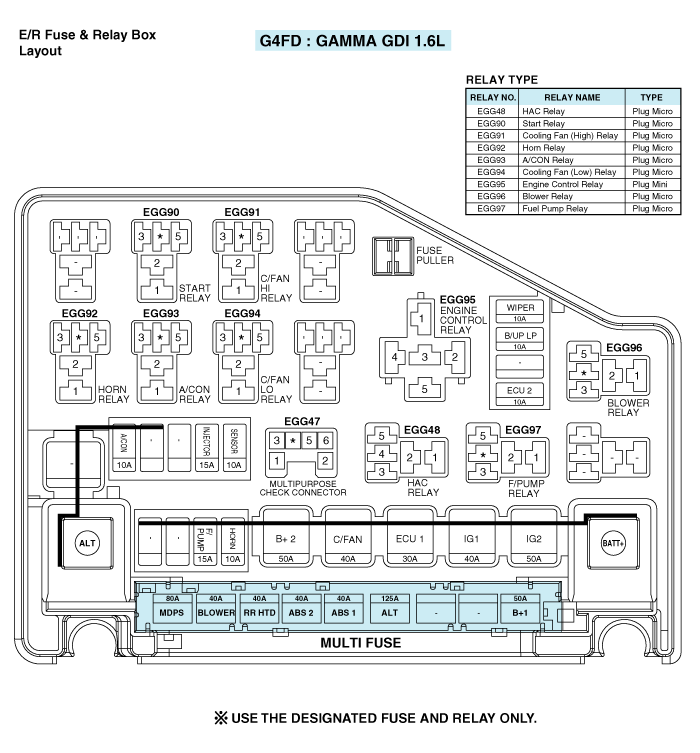

Component Location 1. - 2. Start relay 3. Cooling fan relay(High) 4. - 5. Main relay 6. Horn relay 7. Air conditioner relay 8. Cooling fan relay(Low) ...

Relay Box (Engine Compartment). Repair procedures

Inspection Power Relay Test (Type A) - Do not use pliers. - ...
