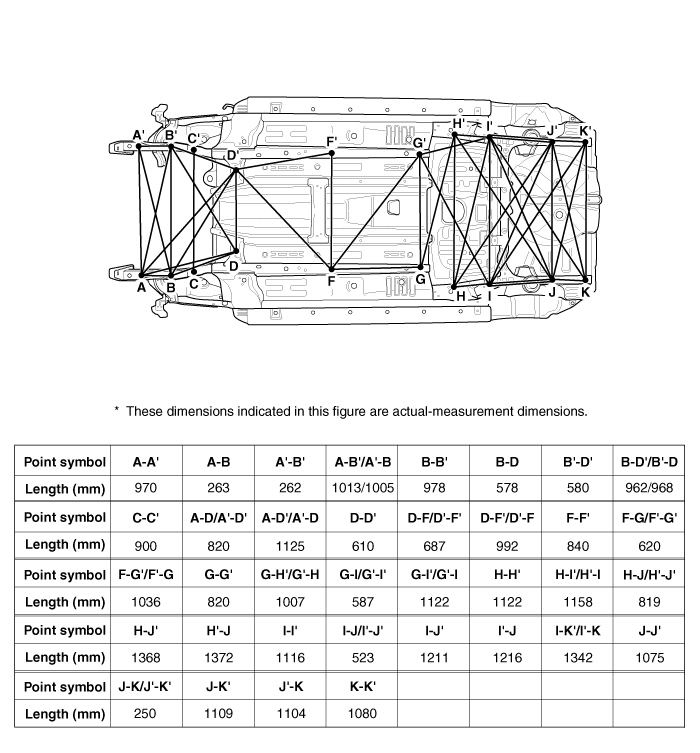

Hyundai Accent: Actual Measurement Dimensions ( 5Door )
Hyundai Accent RB (2010-2018) Service Manual / Body (Interior and Exterior) / Body Dimensions / Under Body. Body Repair / Actual Measurement Dimensions ( 5Door )
|
|
|
|
|
Front side member tooling hole (Ø6.6) |
Side cover mounting hole (Ø8.6) |
Front sub frame mounting hole (Ø19) |
|
|
|
|
|
Front sub frame mounting hole (Ø22) |
Center floor side member tooling hole (Ø10) |
Center floor side member tooling hole (Ø6) |
|
|
|
|
|
Rear floor side member tooling hole (Ø8.8) |
Rear suspension mounting hole (Ø10) |
Rear suspension mounting hole (Ø10) |
|
|
|
|
|
Rear floor side member tooling hole (Ø8) |
Rear floor side member tooling hole (Ø25) |
|
Projected Dimensions ( 5 Door )
Front side member tooling hole (Ø6.6)
Side cover mounting hole (Ø8.6)
Front sub frame m ...
