4 Door

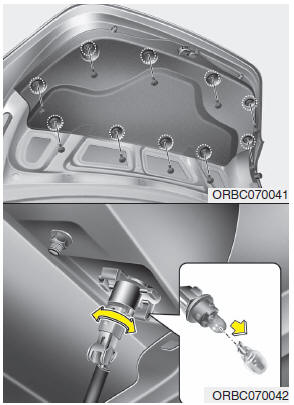

1. Remove the trunk trim.
2. Remove the socket by turning it counterclockwise.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Install the socket by turning it clockwise.
6. Install the trunk trim.
5 Door
1. Using a flat-blade screwdriver, remove the light assembly from the vehicle
by prying the lens gently.
2. Remove the socket from the lens. 3. Remove the bulb by pulling it straight out.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
Disassembly
Key lock assembly
1.
Make a groove on the head of special bolts (A) by a punch.
2.
Loosen the special bolt using a screw driver an ...
Camshaft Position Sensor
(CMPS). Description and Operation
Description
Camshaft Position Sensor (CMPS) is a hall sensor and detects
the camshaft position by using a hall element.
It is related with Crankshaft Position Sensor (CKPS) and
detects t ...
