Hyundai Accent: Components - Components and Components Location - General Information - Restraint (Advanced)Hyundai Accent: Components

Hyundai Accent RB (2010-2018) Service Manual / Restraint (Advanced) / General Information / Components and Components Location / Components

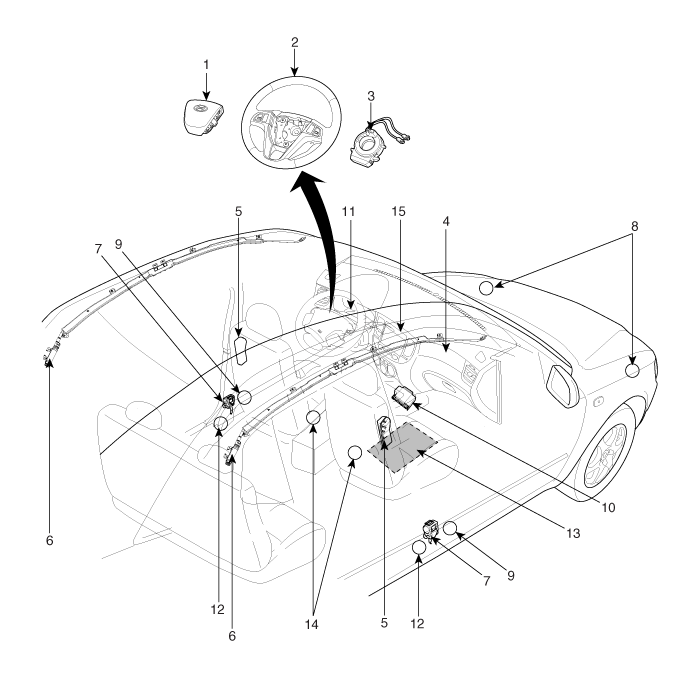

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Passenger Airbag (PAB)
5. Side Airbag (SAB)
6. Curtain Airbag (CAB)
7. Seat Belt Pretensioner (BPT)
8. Front Impact Sensor (FIS)
 9. Side Impact Sensor (SIS)
10. Supplemental Restraint System Control Module (SRSCM)
11. Airbag Warning Lamp
12. Anchor Pretensioner (APT)
13. Passive Occupant Detection System (PODS-F)
14. Seat Belt Buckle Switch
15. Telltale Lamp


Components and Components Location
...

Components Location
Supplemental Restraint System Control Module (SRSCM) Driver Airbag (DAB) / Passenger Airbag (PAB) Side Airbag (SAB) Curtain Airbag (CA ...
