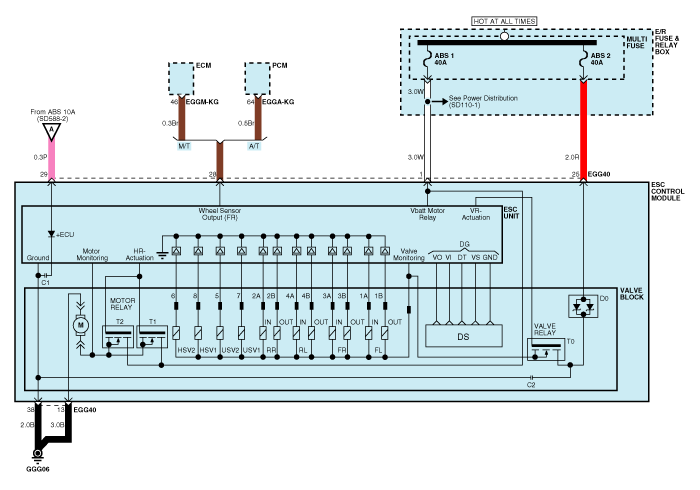

Hyundai Accent: Circuit Diagram - ESC (4)
Fourth generation RB (2010–present) / Hyundai Accent 2010-2019 Service Manual / Brake System / ESC(Electronic Stability Control) System / Schematic Diagrams / Circuit Diagram - ESC (4)
Fourth generation RB (2010–present) / Hyundai Accent 2010-2019 Service Manual / Brake System / ESC(Electronic Stability Control) System / Schematic Diagrams / Circuit Diagram - ESC (4)
ESC connector input/output
Connector Terminal
Specification
Remark
No
Description
29
IGNITION1(+)
High level of wake up ...
