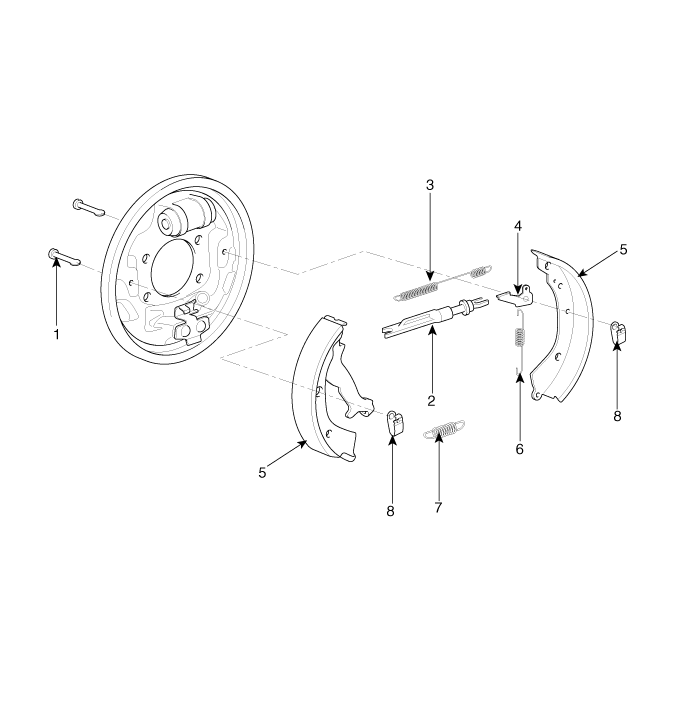

Components
|
1. Shoe hold down pin 2. Shoe adjuster 3. Upper return spring 4. Adjusting lever |
5. Shoe 6. Adjusting spring 7. Lower return spring 8. Shoe hold spring |
