Hyundai Accent: Exhaust Manifold. Components
and Components Location
Hyundai Accent RB (2010-2018) Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold. Components
and Components Location

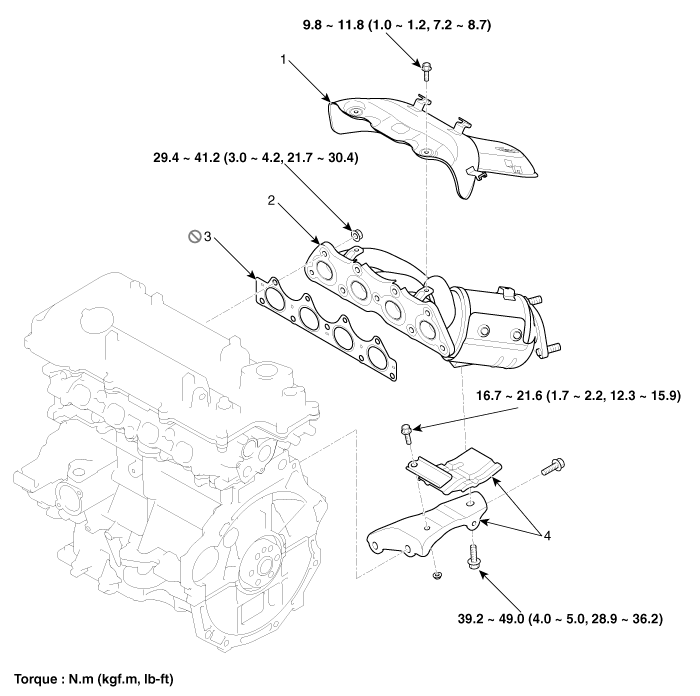

Components
|
1. Heat protector 2. Exhaust manifold |
4. Exhaust manifold gasket 5. Exhaust manifold stay |
Intake Manifold. Repair
procedures
Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal.
Tightening to ...
Exhaust Manifold. Repair
procedures
Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal.
Tightening torque ...
